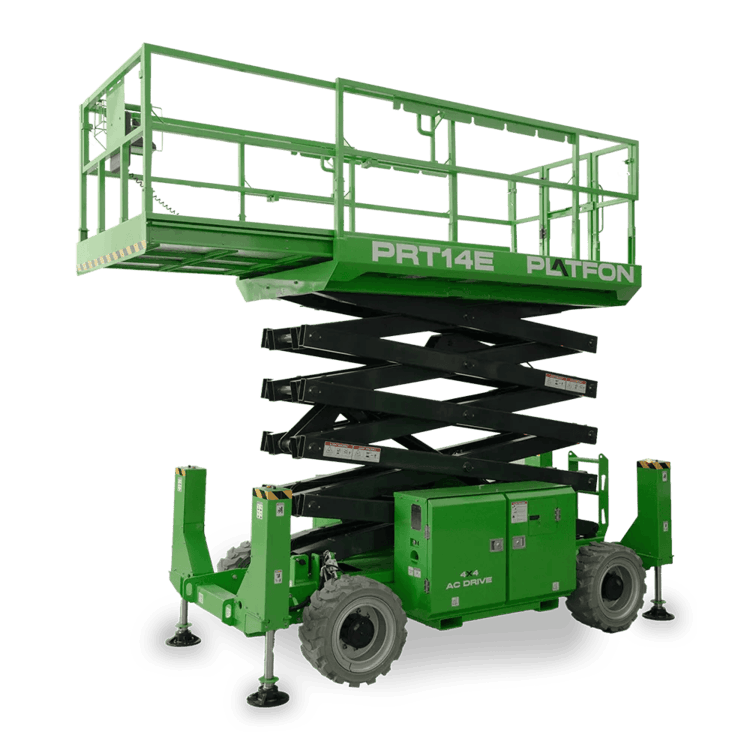

PRT14E
Scissor Lift

The PRT14E Scissor Lift Platform provides operators with a safe working environment thanks to Platfon’s safety-first engineering and user-friendly control systems. With its wide working height and fast access capability, it ensures high efficiency in industrial applications such as construction, maintenance, installation, and cleaning. Its robust construction and stable performance make it a reliable access solution for both indoor and outdoor environments.

Technical Specifications

0 m

Max. Working
Height

0 m

Max. Platform
Height

0 kg

Lifting
Capacity

0 kg

Weight

0 x
0 m

Platform
Dimensions

Standard & Optional Features

4WD
AC Motor Off-Road Mode

Proportional
Control

Automatic
Outrigger Leveling

Dual-Sided
Platform Extension

Full-Height
Entry Gates

BECOME DEALER/DISTRIBUTOR

Our expert team will contact you as soon as possible.

Features

Maximum Working Height

Maximum Platform Height

Length (Stowed)

Width

Height (Rails Raised)

Height (Rails Lowered)

Platform Dimensions

Platform Extension (Front)

Wheelbase

Ground Clearance

Weight

Maximum Number of Persons

Lifting Capacity

Lifting Capacity (Platform Extension)

Driving Speed (Stowed)

Driving Speed (Raised)

Gradeability

Raise and Lower Time

Maximum Outrigger Leveling

Wheel Dimensions

Maximum Outrigger Leveling

Maximum Outrigger Leveling (Side)

Drive – Steering

Battery

System Voltage

Hydraulic Oil Tank Capacity

14.20m

12.20m

3.80m

1.75m

2.72m

2.11m

2.80×1.60m

1.50m

2.28m

0.22m

5580kg

2

365kg

140kg

5.5km/h

0.5km/h

40%

60/45sec.

7°

26×12-16.5

5°

11°

4WD (AC Drive) – 2WS

48V-480Ah

24V

75L

Standard Features

4WD Off-Road Mode

Proportional Control

Automatic Outrigger Leveling

Dual-Sided Platform Extension

Full-Height Entry Gates

Oscillating Axle

Foldable Rails

Emergency Lowering

Overload Protection

Descent Safety Alarm

Tilt Protection System

Safety Bar

Motion Alarm

Dual-Sided LED Lights

Horn

Off-Road Non-Marking Foam-Filled Tires

Hour Meter

Fault Diagnostic System

Self-Lubricating Bearings

Cataphoretic Coating

Optional Features

Platform Anti-Collision System

Air Line to Platform

Pipe Carrying Device

AC Power on Platform

Platform LED Work Light

Custom Color Option
