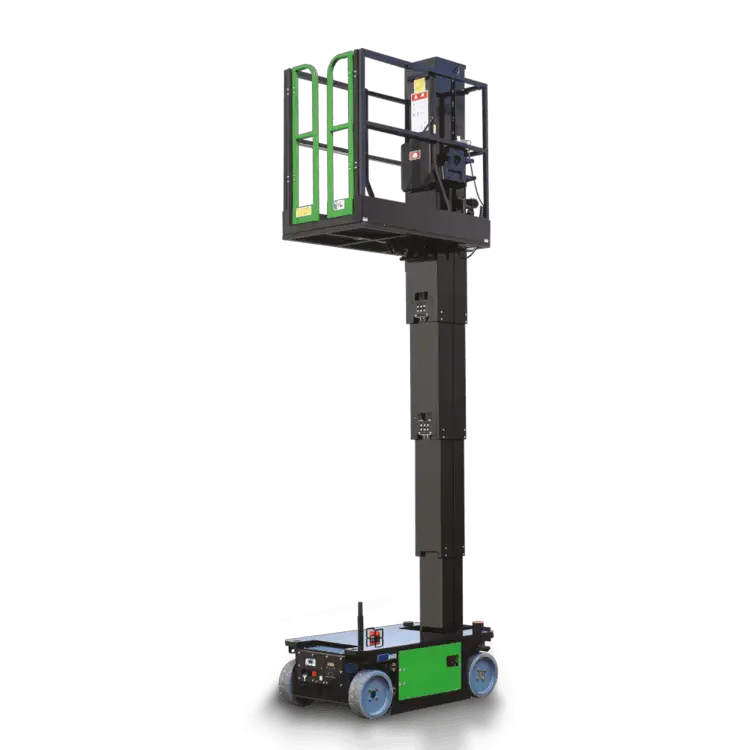

PM-08
Vertical Mast Lift

PM-08 Vertical Platform offers safe and efficient operation in confined spaces thanks to its compact dimensions and robust construction. Its user-friendly control system and safety-focused design enable operators to reach high points quickly and precisely. Its lightweight and portable construction facilitates ease of use in various industrial applications such as maintenance, installation, warehouse, and facility work. The PM-08 Vertical Platform is the ideal choice for professionals seeking a safe, practical, and effective solution.

Technical Specifications

0 m

Max. Working
Height

0 m

Max. Platform
Height

0 kg

Lifting
Capacity

0 kg

Weight

0 x
0 m

Platform
Dimensions

Standard & Optional Features

Emergency
Stop

Emergency
Lowering

Overload
Protection

Tilt
Protection

Motion
Alarm

BECOME DEALER/DISTRIBUTOR

Our expert team will contact you as soon as possible.

Features

Maximum Working Height

Maximum Platform Height

Length

Width

Platform Dimensions

Platform Extension

Wheelbase

Weight

Maximum Number of Persons

Lifting Capacity

Driving Speed (Stowed)

Driving Speed (Raised)

Gradeability

Turning Radius

Wheel Dimensions

Working Slope (X/Y)

Battery Capacity

Battery Charger

8.0m

6.0m

1.36m

0.81m

1.3m×0.7m

0.55m

1.04m

1060kg

1

160kg

4.5 km/h

0.5 km/h

25%

0.30m

305x100mm non-marking

2.5°/2.5°

24V 100Ah (C20) maintenance-free

24V/15A

Standard Features

Emergency Stop

Emergency Lowering

Overload Protection

Tilt Protection System

Motion Alarm

Warning Beacon

Horn

Automatic Pothole Protection

Proportional Control

Charger Protection

Fault Diagnostic System

Automatic Braking System

Hour Meter

Drive at Full Height

Optional Features

AC Power on Platform

Custom Color Option

Platform LED Work Light
