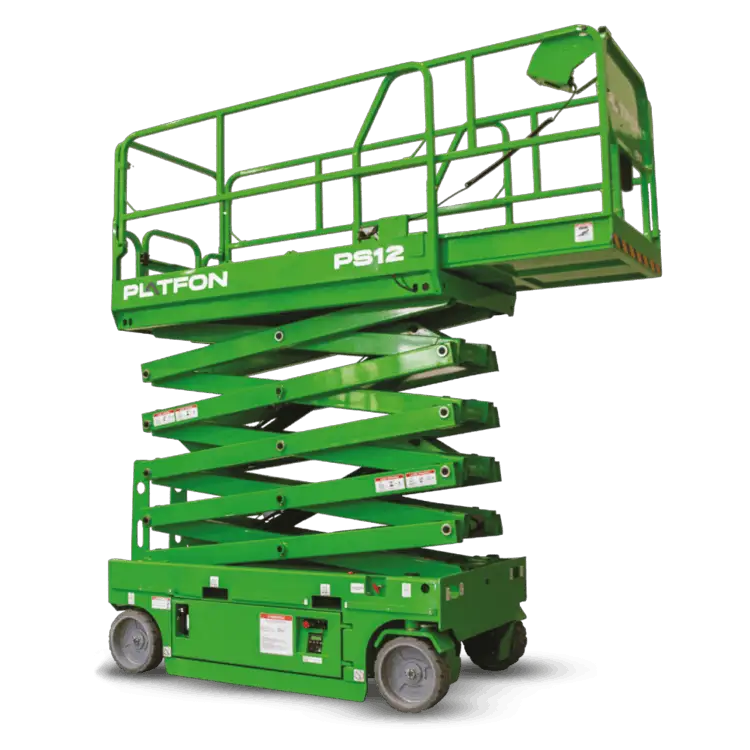

PS-12
Scissor Lift

The PS-12 Scissor Lift Platform offers safe and efficient operation in confined spaces thanks to its compact and durable design. Its spacious platform and user-friendly control system enable operators to access high points quickly and precisely. Its powerful motor and safe lifting mechanism deliver high performance in various industrial applications such as maintenance, installation, construction, and warehouse work. The PS-12 Scissor Lift Platform is the ideal choice for professionals seeking combination of safety, efficiency, and ease of use.

Technical Specifications

0 m

Max. Working
Height

0 m

Max. Platform
Height

0 kg

Lifting
Capacity

0 kg

Weight

0 x
0 m

Platform
Dimensions

Standard & Optional Features

Emergency
Stop

Automatic
Pothole Protection

Overload
Protection

Tilt
Protection

Safety
Bar

BECOME DEALER/DISTRIBUTOR

Our expert team will contact you as soon as possible.

Features

Maximum Working Height

Maximum Platform Height

Length (Stowed)

Width

Height (Rails Raised)

Height (Rails Lowered)

Platform Dimensions

Platform Extension

Wheelbase

Ground Clearance (Pothole Stowed)

Ground Clearance (Pothole Deployed)

Weight

Maximum Number of Persons

Lifting Capacity

Lifting Capacity (Platform Extension)

Driving Speed (Stowed)

Driving Speed (Raised)

Gradeability

Turning Radius (Inside)

Turning Radius (Outside)

Working Slope (X/Y)

Raise and Lower Time

Wheel Dimensions

Battery

Battery Charger

11.8m

9.8m

2.475m

1.18m

2.48m

1.88m

2.3×1.15×1.10m

0.9m

1.92m

0.1m

0.02m

2580kg

2/1

320kg

113kg

3.5km/h

0.8km/h

25%

0m

2.35 m

1.5°/3°

52/84sec.

381x127mm

24V/200Ah

24V/30A

Standard Features

Emergency Stop

Emergency Lowering

Descent Safety Alarm

Safety Bar

Horn

Non-Marking Tires

Hour Meter

Fault Diagnostic System

Proportional Control

Manual Brake Release

Anti-Collision Plate

Automatic Pothole Protection

Overload Protection

Tilt Protection System

Dual-Sided LED Lights

Drive at Full Height

Forklift Transportable

Automatic Braking System

Charger Protection

Foldable Rails

Self-Lubricating Bearings

Motion Alarm

Optional Features

Platform Anti-Collision System

Air Line to Platform

Pipe Carrying Device

AC Power on Platform

Platform LED Work Light

Custom Color Option
